Checking equipment

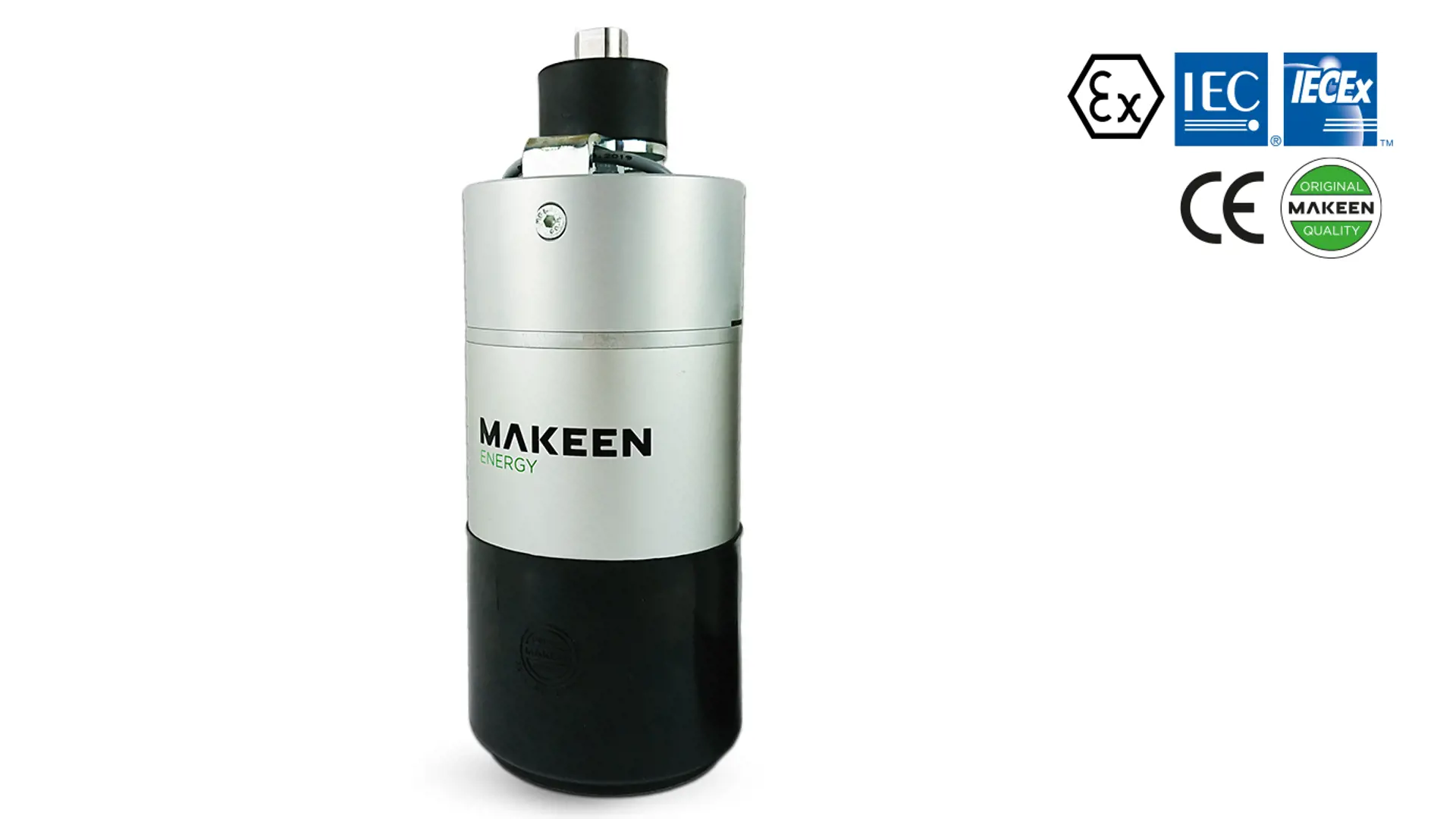

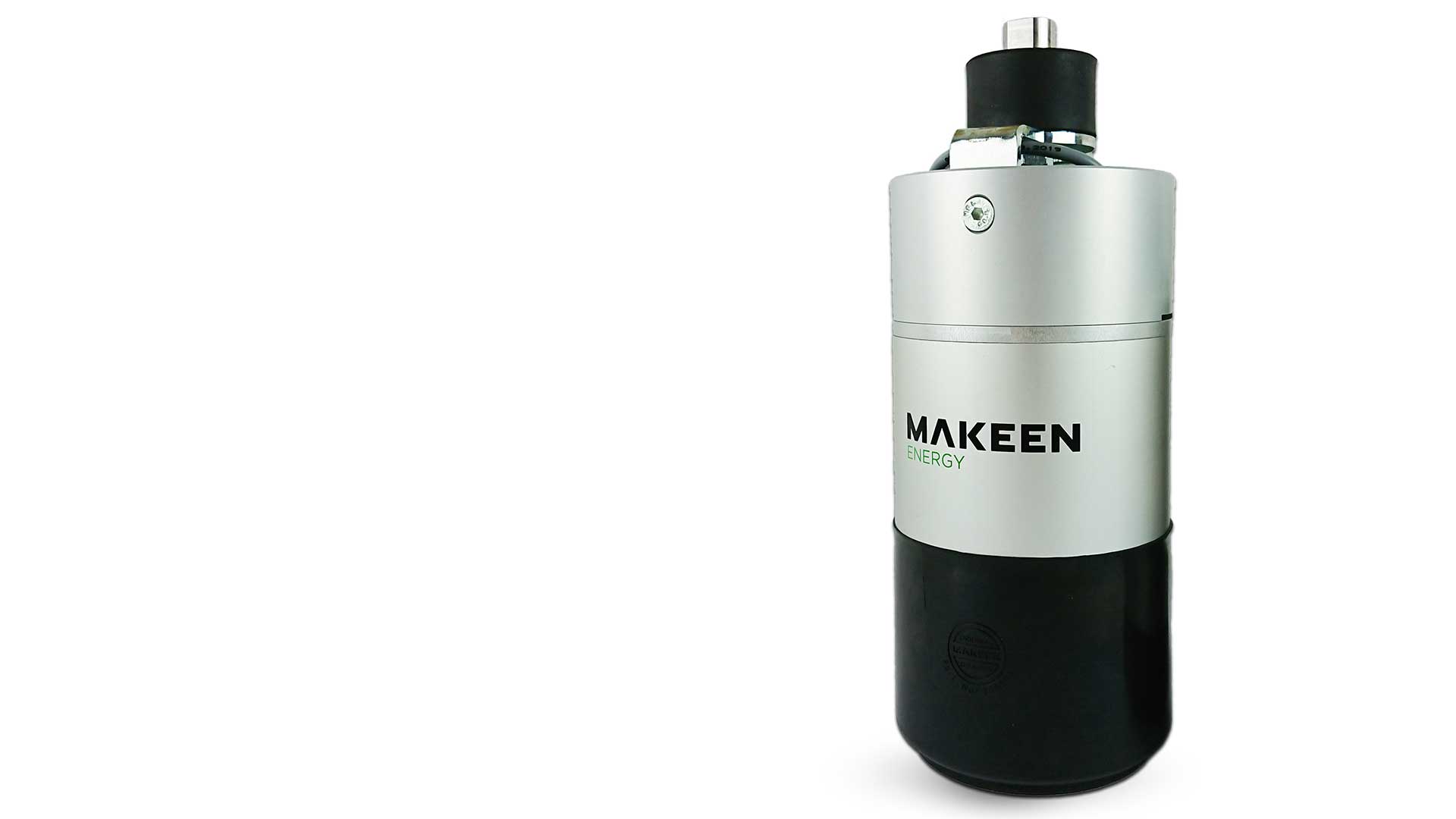

The inherently and intrinsically safe infrared (IR) leak test head CIR-II is designed to be mounted on LPG leak detection units/machines that can fully automatically or manually test filled LPG cylinders for possible gas leaks.
The CIR-II is the latest, improved and sophisticated version of the CIR test head with numerous advanced features and great benefits.
As a unique patented solution, the CIR-II not only offers higher detection levels but also ensures safer operation. The higher detection levels guarantee that the filled cylinders are 100% safe for your customers.
The CIR-II is more reliable and consistent in performance, thanks to new software with an improved leak detection algorithm and new electronic hardware with higher ADC (Analogue-to-Digital Converter) resolution.
Moreover, the CIR-II is adaptable to a range of cylinder valve types with optional quick interchangeable bottom guides.
With the careful design and material selection, the weight of the CIR-II is significantly reduced so that the wear and tear effect is almost zero.
Safety
The CIR-II is intended for operation in hazardous areas classified as Zone 1 and Zone 2, according to: EN IEC 60079-10-1
The CIR-II is tested and type approved by a notified body according to the ATEX Directive 2014/34/EU.
Benefits
- Safer for you and your customers
- Higher LPG leak detection levels than the market standard
- More reliable and consistent in performance
- Improved software and leak detection algorithm
- Higher ADC resolution
- Quickly adaptable to different cylinder sizes and valve types
- Increased lifetime due to almost zero wear and tear effect
- Less noise due to flexible suspension and shock absorbing bottom guide
- Easy to upgrade on existing leak detectors
- IoT-ready design
- Designed with protection technique limiting optical radiation
- Ex marking according to the IECEx certification scheme and ATEX Directive: II 2G Ex d ib is op IIB T4 Gb
