Checking equipment
Static check scale
Automatic in-line in chain conveyor

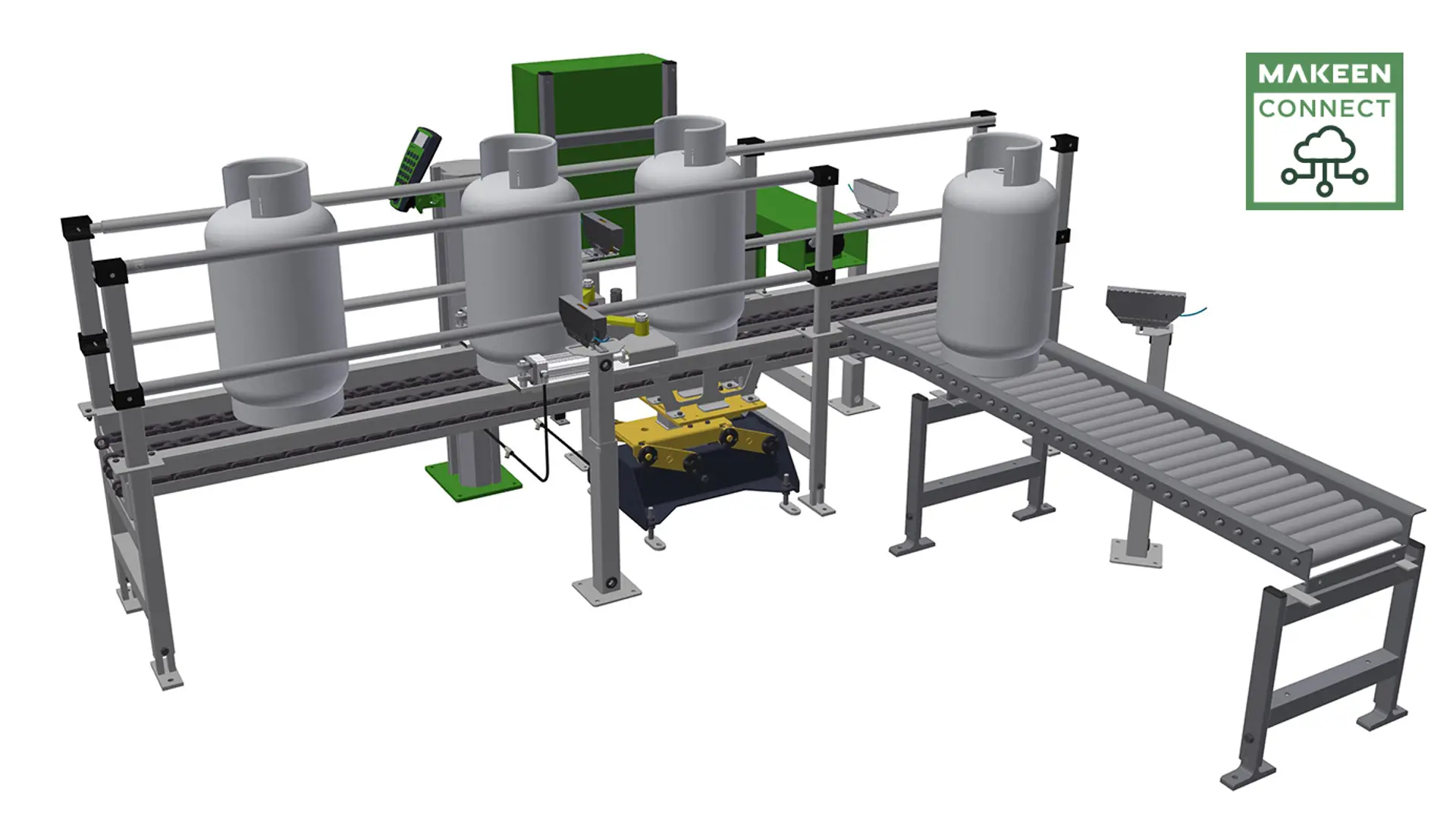

The electronically controlled static check scale SCS is designed for in-line installation in a chain conveyor.
The SCS is fully automatic provided the cylinder tare value is transferred and re-used from the filling process (otherwise the tare value has to be encoded). It performs a weighing check of the net LPG content in the cylinder. The measured result is compared to the preset permitted maximum overfilling/underfilling limits. This comparison decides whether the cylinder can be approved or rejected.
MAKEEN Connect
The unit is compatible with MAKEEN Energy's Industry 4.0 Digital Solution, which enables data capturing of the process for remote supervision, performance optimisation, and predictive/preventive maintenance alerts through e.g. a MAKEEN Energy cloud solution (optional).
Benefits
Maximum safety level
- Fully automatic check weighing of all cylinders ensures correct net LPG content
- Fully automatic sorting based on preset sorting limits for all cylinders eliminates human errors and prevents dangerous overfilled cylinders
- Improved accuracy and reliability due to a special noise filtering and temperature compensation algorithm running in the LCM load cell module
Maximum production uptime
- Automatic predictive and preventive maintenance alerts with MAKEEN Energy’s Industry 4.0 Digital Solution to avoid breakdowns (optional)
- Automatic operation stops (e.g. low compressed air pressure) prevent process errors and assist in quick restarting
- Quick adjustment to different cylinder sizes
Optimised production
- Remote supervision with MAKEEN Energy’s Industry 4.0 Digital Solution for production optimisation
- Automatic tare value transfer (re-use of tare value input from the filling process)
- Automatic feedback to filling machine to correct “filling set point” (optional)
- Automatic zero-setting ensures that particles falling off the cylinders do not influence the weighing
