Finishing equipment

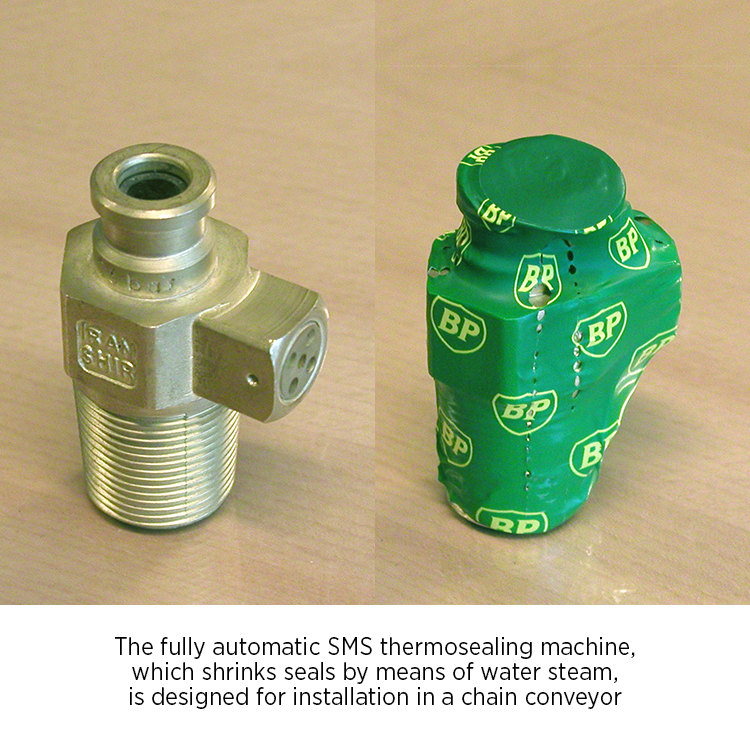

MAKEEN Energy's thermosealing machines are designed for safe and efficient shrinking of thermoplast caps or sleeves around LPG cylinder valves.
- Sealed valves are protected and safe valves
- Logo can be printed on the seal
- Sealed valves are a guarantee for correct cylinder net weight
- Cylinders with sealed valves are filled by authorised fillers
Benefits
- Satisfied end-users due to safe and correctly filled cylinders
- Image building as regards quality and safety
- Visual difference between empty and filled cylinders
- Sealing of most valve and cylinder types
- Electricity savings; automatics ensure limited use of full power
- Integrated automatics protect against overheating
Possibilities

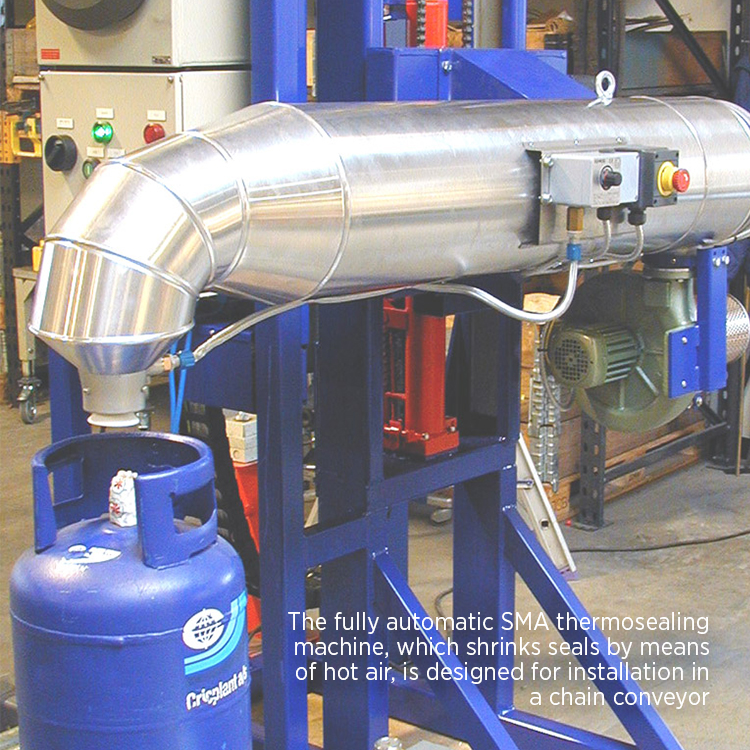

- Shrinkage by means of water steam or hot air

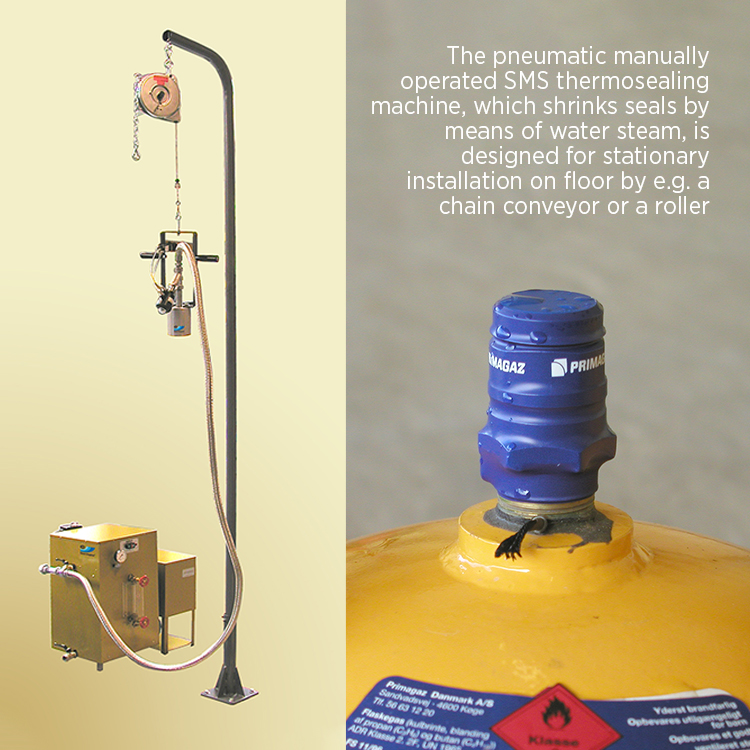

- Manual, semiautomatic or automatic solution
- Installation as stand-alone unit or in-line in conveyor

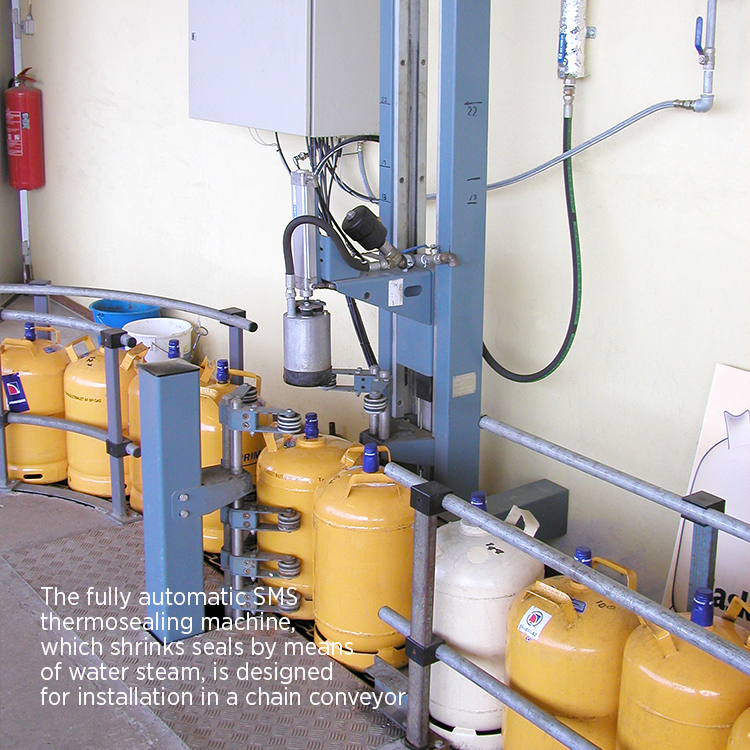

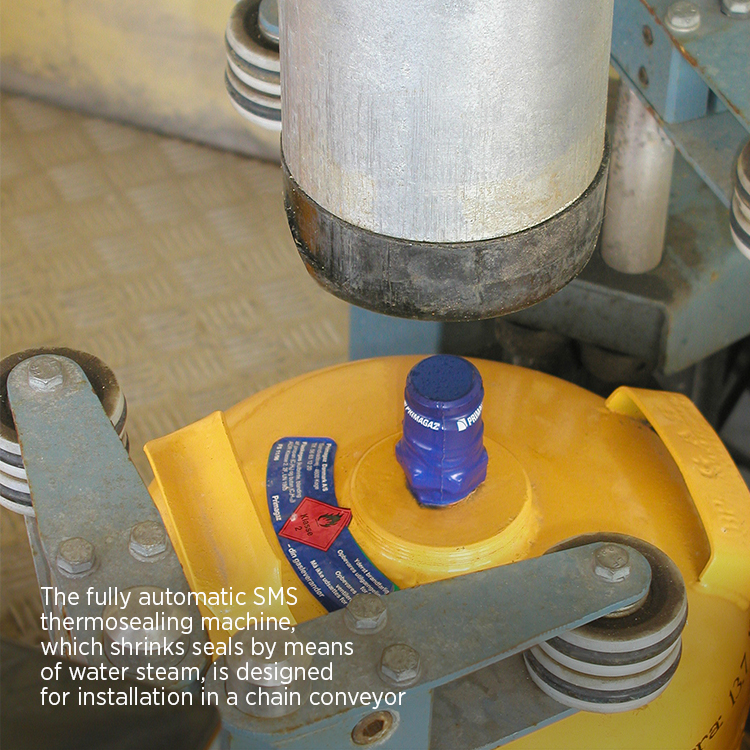

- With in-line conveyor the process can be fully automatic
- For fixed cylinder height or manually height adjustable
- Sealing of valves with hard caps
- Ex-proof steam generator for installation in hazardous area when shrinking with water steam
- Separate seal application system for manual or automatic application of shrinkable caps or sleeves
Safety
- Ex marking according to the ATEX Di-rective and applicable EN standards:
II 2G Ex h IIB T3 Gb - All thermosealing machines are intended for operation in hazardous areas classified as Zone 1 or Zone 2 according to EN/IEC 60079-10-1
- All thermosealing machines are designed and validated in accordance with a certified ISO:9001 quality management system; furthermore, they are designed according to all relevant requirements set out in applicable EU Directives
