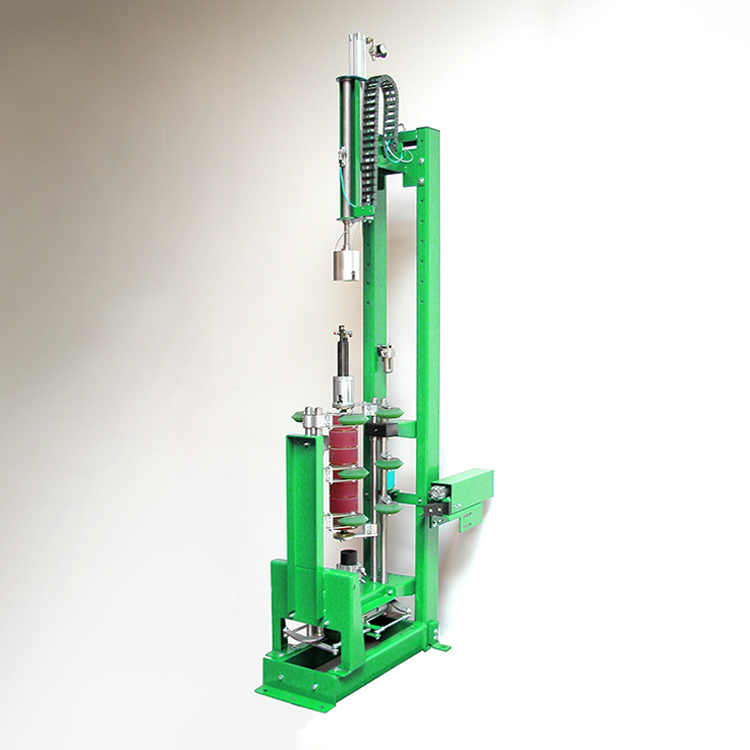

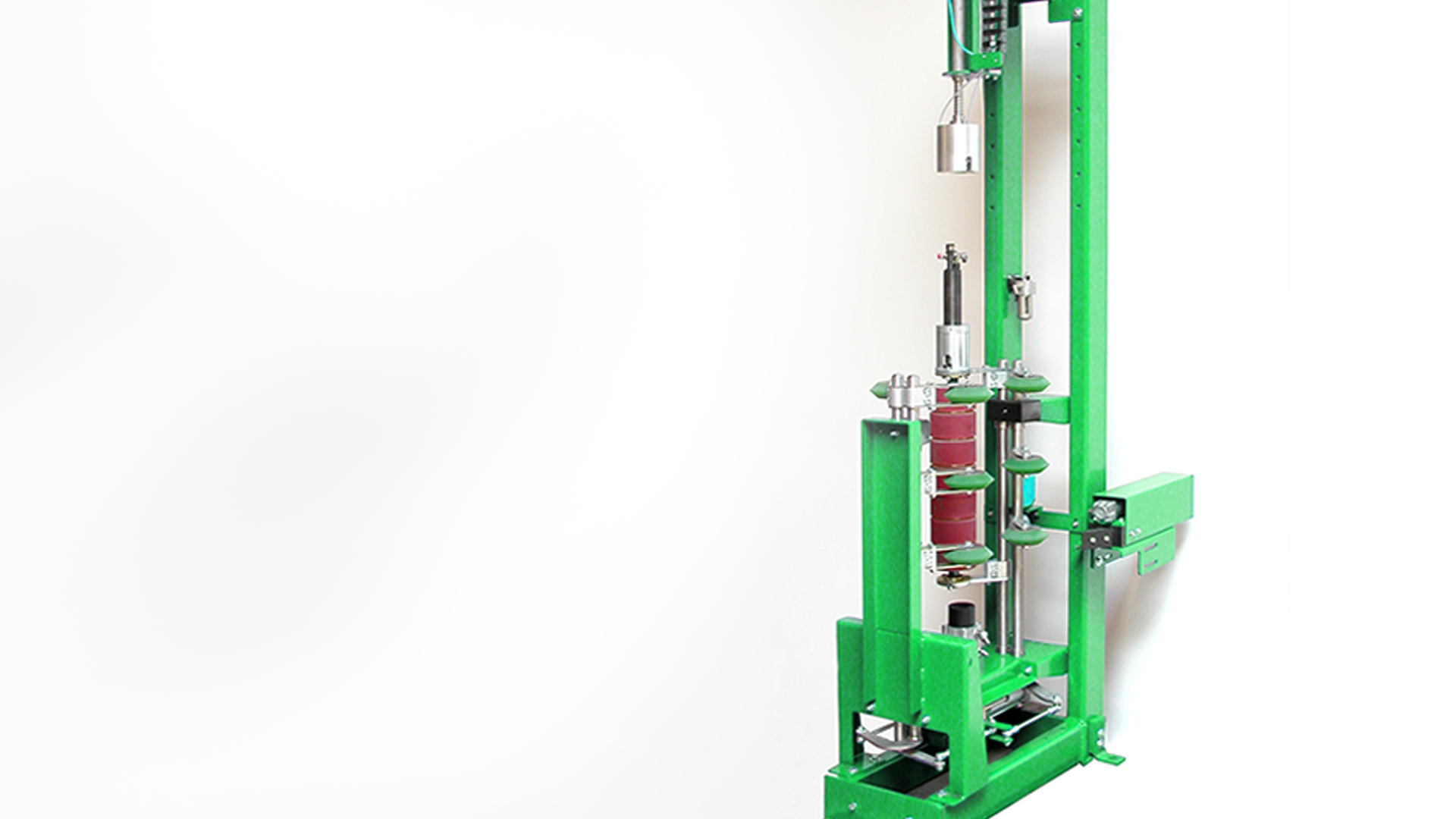

Valve orientation machine

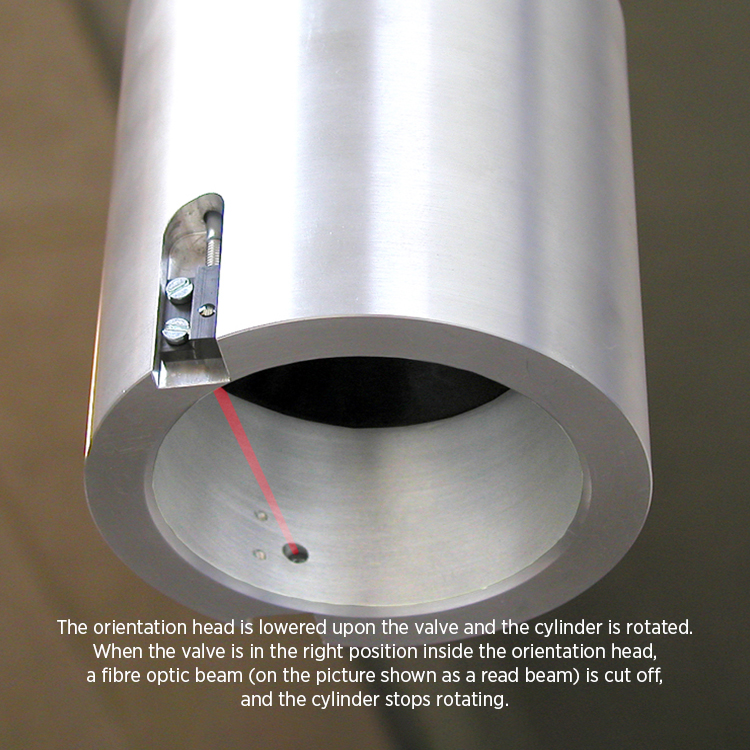

MAKEEN Energy’s valve orientation machine is designed to perform a help function in connection with manual or automatic filling of cylinders with screw valves. The valve orientation machine ensures that the LPG cylinder is turned with the socket of the cylinder valve in the right direction for processing.

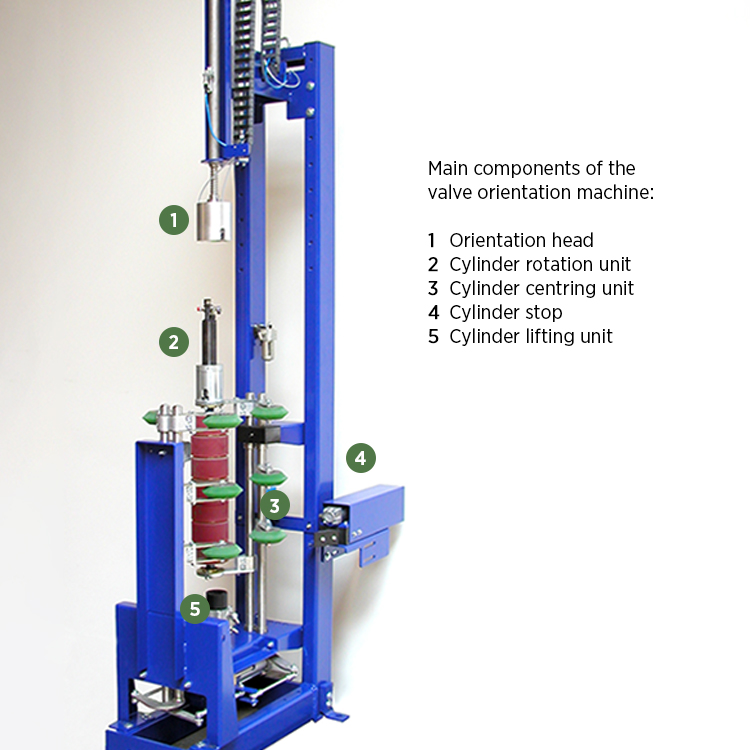

The VOS valve orientation machine is designed to be incorporated in-line in a chain conveyor. It is used for automatic orientation of screw valves on gas cylinders, prior to various automatic processes as e.g. filling or application of caps.

In connection with fully automatic filling on carrousel, the machine is placed before the introduction unit in order to ensure correct orientation of the cylinder valve before introduction of the cylinder onto the filling machine.

Keynotes

  • Fully automatic orientation of screw valves
  • Capacity increase
  • Minimum need for manpower
  • Flexible for cylinders with or without shroud
  • Flexible for all cylinder diameters and heights
  • Easy installation in existing plants

Benefits

  • Fast and uniform orientation of screw valves
  • Minimized number of breakdowns
  • Cylinders can be processed automatically after orientation
  • Capacity increase thanks to optimisation of manual processes
  • Optimised ergonomics due to elimination of one-sided repeated work
  • Easy to set up: all necessary software is installed in the HMI/CUC controller
  • Ready for integration in fully automatic filling system
  • Easy adjustment and maintenance
  • Low power consumption

Possibilities

  • Good for installation before all in-line process machines demanding uniform orientation of screw valves
  • Possibility for communication with the following system-integrated machine
  • Height adjustable model available
  • Stand-alone model available

Safety

  • Ex marking according to the ATEX Di-rective and applicable EN standards: ce-and-ex-proofed-logos II 2G Ex h IIB T3 Gb
  • All valve orientation machines are intended for operation in hazardous areas classified as Zone 1 or Zone 2 according to EN/IEC 60079-10-1
  • All valve orientation machines are designed and validated in accordance with a certified ISO:9001 quality management system; furthermore, they are designed according to all relevant requirements set out in applicable EU Directives

More LPG products and solutions

  • image of an LPG cylinder evacuation system

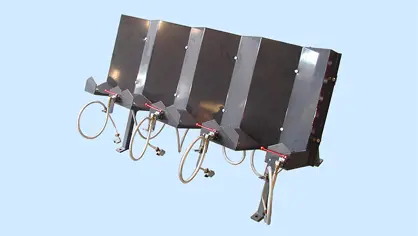

    Evacuation systems

    If an LPG cylinder is overfilled, leaky or in need of repair, our evacuation systems make it easy and safe to empty them of gas - with minimal handling.

    Go to product

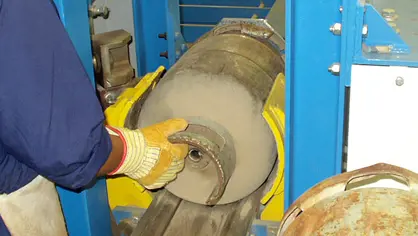

  • Hot repair of LPG cylinders

    The equipment for hot repair of LPG cylinders includes accessories for cutting and surface welding of shrouds and foot rings as well as equipment for normalising LPG cylinders.

    Go to product

  • image of a MAKEEN Energy UFM universial filling machine

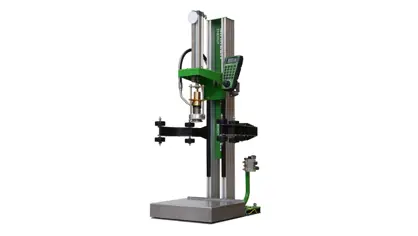

    UFM – Medium filling capacity
